My Weather  Station Equipment 2008
This is most of the equipment I am using for my weather station
Software   Camera  Davis 6152c Weather Station .    Sun Sensor  Home


The Davis Instruments Vantage Pro2 line of weather stations retain all the great features of the original Vantage Pro line but now incorporate many additional features and improvements!

The Davis Instruments 6152C Cabled Vantage Pro2 with Standard Radiation Shield includes a 100' cable (max. distance is 1,000') to connect between the Integrated Sensor Suite and the display console.  This upgraded weather station has all the features that made the original Vantage Pro so famous, yet adds many more features such as button realignment to make navigating to often-used functions much easier; a redesigned rain collector that is laser-calibrated to ensure the best accuracy possible; and a re-tooled Integrated Sensor Suite with upgraded electronics. The Cabled Vantage Pro2 also has a fifth radiation shield plate to improve accuracy and readings!

The Model 6152C Cabled Vantage Pro2 consists of a console unit and an innovative integrated sensor suite that includes a rain collector with self-emptying bucket, temperature and humidity sensors and an anemometer. The sensor suite is housed inside a radiation shield, protecting the sensors against solar radiation and additional sources of reflected and/or radiated heat.

In addition, this high-tech Model 6152C  Vantage Pro2 Cabled Weather Station will track highs and lows (and/or totals and averages) for almost all weather variables for the past 24 days, months or years and track your local forecast!

The Model 6152C Cabled Vantage Pro2 Weather Station from Davis Instruments includes a 100' signal cable and other features such as on-screen graphing, forecasting using easy-to-read icons (sunny, cloudy, rain, snow), barometric pressure trend, inside temperature, dew point, humidity information, time and date, and much more!

Vantage Pro2 weather stations from Davis Instruments are the best for amateur weather observers and weather professionals alike!

Features

  • Provides accurate weather data in a sophisticated yet easy-to-read format.

  • Stylish backlit console provides continual updated weather information on 3.5-inch by 6-inch LCD screen.

  • 100' signal cabled included.  Maximum length 1,000'.

  • Detailed instruction manual included and technical support available.

  • Weather information includes inside/outside temperature and humidity, rainfall amount, wind speed, wind direction and wind chill factor and barometric pressure.

  • Additional weather information includes barometric pressure trend, heat index, dew point, time of sunrise and sunset, moon phase, forecasting icons and much more.

  • Rain collector is self-emptying aluminum-plated tipping bucket reading rainfall in 0.01-inch increments.

  • Standard radiation shield protects sensors from harmful reflected or radiated heat.

  • Integrated sensor suite includes detachable anemometer.

  • Optional repeaters can increase wireless transmission range from 100 to 1,000 feet each depending on terrain.

  • Maximum anemometer wind speed capability rated in excess of 170 mph.

  • Console powered by AC adapter with 3 “C” backup batteries (not included). All mounting hardware is included.

  • Set more than 70 alarms for multiple functions.

  • Data logger and software package available, sold seperately.

  • Optional tripod is available.

  • One year manufacturer's warranty.

  • U.S. Version, proudly made in America
    Brought from http://www.scientificsales.com/

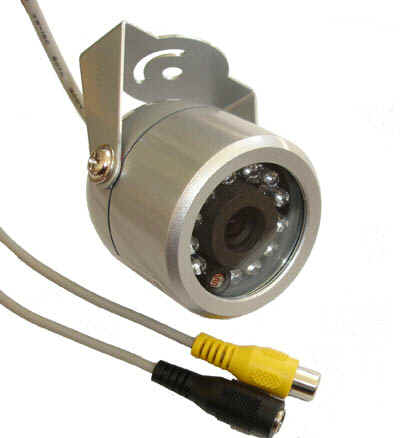

12 LED Nightvision Camera

Camera and Transmitters brought from
http://www.viewtech.co.nz/product.pasp?emGUID=8D54F3B560E240688E8282F295805A3D&categoryid=26&productid=9

12 LED Nightvision Camera

This is a great little security camera and has the added bonus of up to 10 meters viewing in pitch black conditions.   This unit is fully waterproof and is super easy to install.  Great for around the home and garage.  Night vision mode is fully automatic and during the day this camera will operate as normal colour camera.



features

  • 10 meter nightvision range

  • auto sensing nighvision activation

  • full metal construction

  • connect to any TV, VCR, DVR,DVD recorder

  • easy to install mount

  • water proof



specs

Image Sensor Sharp 1/4 CCD
Horizontal Resolution 420 lines
Colour System PAL
Min Illumination 0.0Lux
Video Output 1.0Vp-p 75 Ohms
Electronic Shutter 1/50 to 1/100000 sec
Power 12V DC
Size 50mm Diameter, 65mm deep

included

  • 1 x Camera
  • 1 x User manual

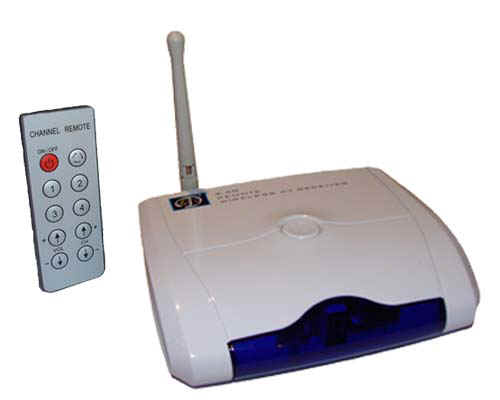

                              USB Receiver with Remote                                          Transmitter Module



With both USB and standard video ouputs this is our most featured     receiver.  Comes with drivers and software which will let you record straight to your desktop or laptop.

features

  • USB Output
  • RCA audio/video output
  • 4 Channel
  • 2.4Ghz
  • Auto cycle mode
  • Full remote control
  • powered by USB port.  A power supply is included for use with a standard TV.

specs



Channels 4
Video Output RCA 1.0Vp-p 75 ohm x2
Colour System PAL
Audio Yes
Power 12V DC

 included

  • 1 x Receiver
  • 1 x set of AV leads
  • 1 x USB cable
  • power supply


This transmitter plugs straight into any existing security camera and makes it wireless.  The picture can be transmitted up to 500m away and it will transmit audio as well.  This unit can be used in conjunction with any of our wireless receivers in the receiver section.

features

  • Up to 500m range

  • video and audio sending

  • 4 Channel Selectable

  • connect to any TV, VCR, DVR,DVD recorder

  • easy to install

 specs



Frequency 2.4Ghz
Range Up to 500m
Colour System PAL
Video Output Input 1.0Vp-p 75 Ohms
Power 12V DC

included

  • 1 x Transmitter
  • 1 x Power Supply

TOP
Solar Radiation Detector
[S3-R1-A]

From Hobby Boards  http://www.hobby-boards.com/catalog/product_info.php?products_id=1503
The Solar Radiation detector measures sunlight, and can be used as a part of an overall weather station. It can also be used for many specific monitoring uses, such as tracking the sunlight in various areas of your garden in order to optimize your planting plans. It detects light in the visible to infrared portion of the spectrum, with peak detection at 860nm and an acceptance angle of 140 degrees.

This Solar Radiation Detector with RJ45 is substantially larger than than the SR3-R1-A Solar Radiation Detector. It is also a totally different board design. In addition to adding dual RJ45 connectors (the board still has screw terminals for those who prefer them), we have added a voltage regulator to prevent the sensor from overloading the 1-wire network when light levels are extremely high. This device can optionally use external power of 9-24 volts DC. Either our Power Injector or our 6 Channel Hub would provide the needed power. This is a fully assembled and tested unit.

The DS9490R USB adaptor connects your 1-Wire network to your computer. This, or something comparable, will be required in order to run your 1-Wire network. It has an RJ12 standard telephone connector for connecting to your 1-Wire network, and a standard USB connector for attaching to your computer. We offer an adaptor cable, shown below, to facilitate connection between the RJ12 connector and an RJ45 1-Wire network.


Software
The software I use is Weather Display which can be obtained from  WEATHER DISPLAY
It is very good and compatible with most weather stations.also there is a back up service in the form of a web forum at WEATHER-WATCH COM

Weather-Display
